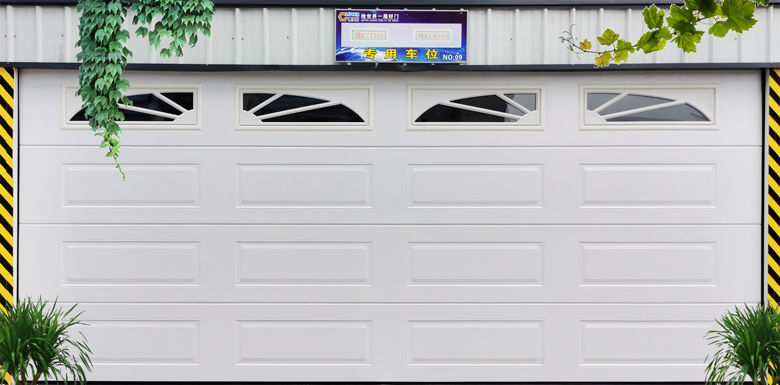

Garage Door - Ranch

  • Big rectangle,size 1076×350mm
  • American style
  • Foam insulated
  • Any size available
  • Product description: The ranch style sectional garage doors are attracting more and more eye balls from non-American market.
  • INQUIRY   EMAIL

Model: Ranch
Section height range: 430mm-610mm,adjustable
Production:The panels are made by self-designed continuous line,flat surface,no blistering in strong sunlight,hard adhesion between steel sheet and foam(extra glue sprayed)
Equal length: The panels length of each door are exactly the same,which is attributed to the smart-designed cutting unit. Ensuring all the rectangles are aligned perfectly and aesthetically.
Pre-drilling holes:To save installation labor and time, we can pre-drill panel holes automatically.
Protection film: The plastic films are applied to the bending edge precisely, you can take off the film by finger, needn't the help of blades and damage the painting.
Material: Steel or Aluminium
Insulation: PUR (polyurethane) and PIR(polyisocyanurate,fire retardant,oxygen index 26 ), CFC free
Thickness: 40mm,43mm,50mm,75mm
Foam density: 45 kgs/cbm
Certificate: CE
Warranty: 10 years


More details:

1) The sealing fixed at botton instead of top, won't fall out, better insulation effect.

2) With through reinforcement steel stripe,the screws can hold stronger.

Finger-safe joint,40mm



Thermo-break joint,43mm,50mm,75mm;

This can stop the heat transmission and reduce leakage effectively, saving energy,environment friendly.
