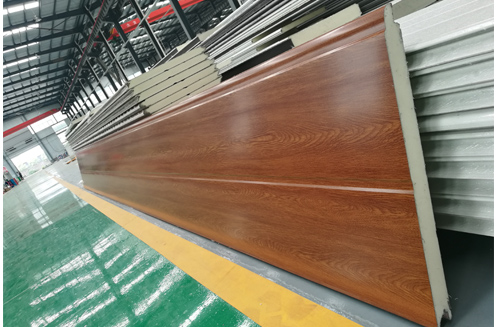

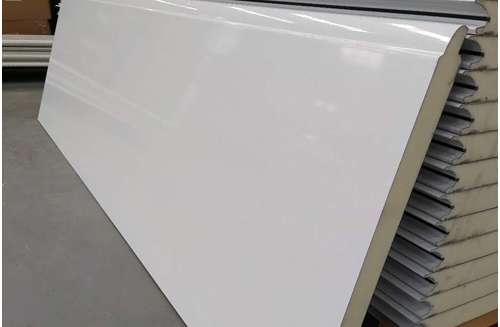

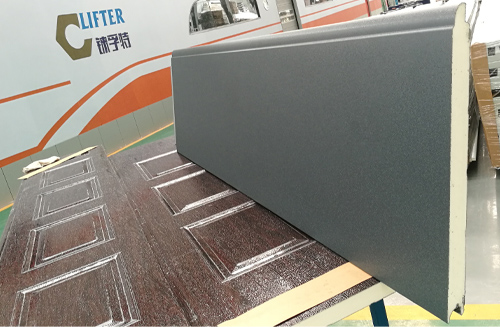

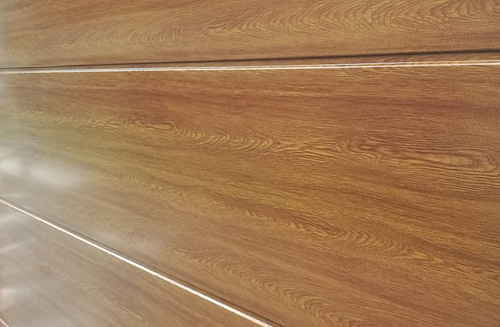

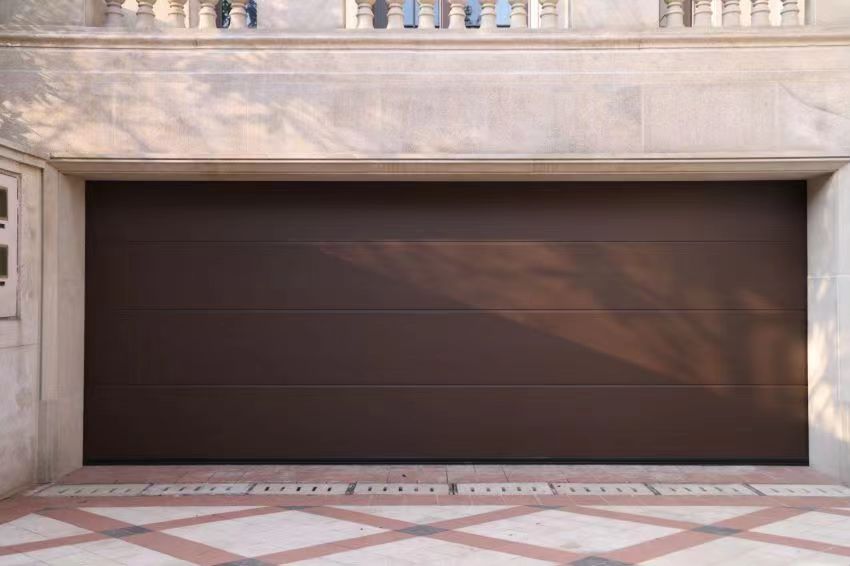

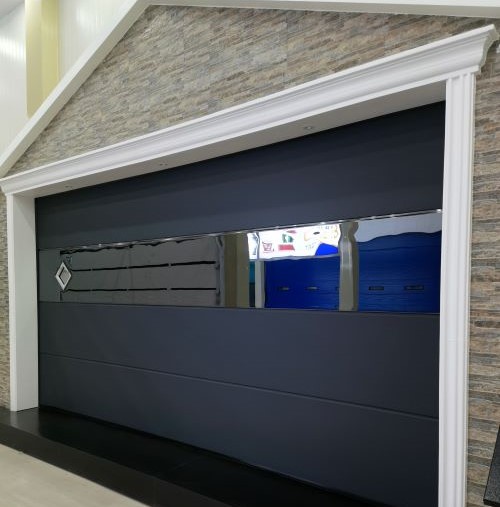

Model: Smooth/Flush/Mirror |
|
Section height range: 430mm-610mm,adjustable |
|

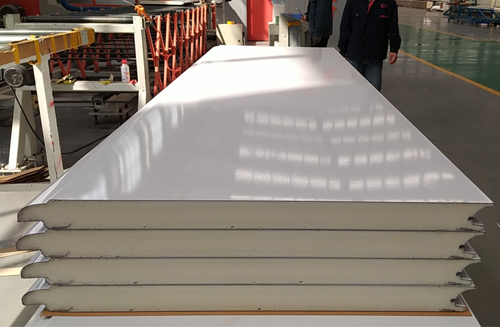

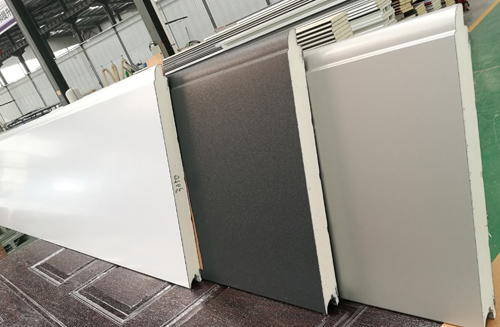

Production:The panels are made by self-designed continuous line,flat surface,no blistering in strong sunlight,hard adhesion between steel sheet and foam(extra glue sprayed) |
|
Equal length: The panels length of each door are exactly the same,which is attributed to the smart-designed cutting unit. |
|
Pre-drilling holes:To save installation labor and time, we can pre-drill panel holes automatically. |
|
Protection film: The plastic films are applied to the bending edge precisely, you can take off the film by finger, needn't the help of blades and damage the painting. |
|
Material: Steel or Aluminium |
|
Insulation: PUR (polyurethane) and PIR(polyisocyanurate,fire retardant,oxygen index 26 ), CFC free |
|
Thickness: 40mm,43mm,50mm,75mm |
|
Foam density: 45 kgs/cbm |
|
Certificate: CE |
|
Warranty: 10 years |
More details:
1) The sealing fixed at botton instead of top, won't fall out, better insulation effect.
2) With through reinforcement steel stripe,the screws can hold stronger.

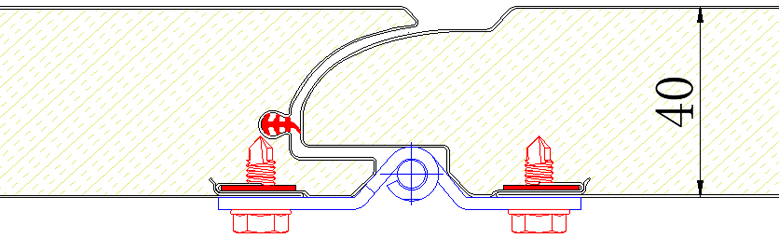

Finger-safe joint,40mm
Thermo-break joint,43mm,50mm,75mm
This can stop the heat transmission and reduce leakage effectively, saving energy,environment friendly.
