Industrial Door

Panel type:Thermo-break type,43mm,50mm,75mm,80mm and (43 + 60, 43+95, 51+120)rib

Material: Sandwich structure,steel/Aluminium skin+foam filling

Production:The panels are made by self-designed continuous line,flat surface,no blistering in strong sunlight,hard adhesion between steel sheet and foam(extra glue sprayed)

Insulation: PUR (polyurethane) and PIR(polyisocyanurate,fire retardant,oxygen index 26 ), CFC free

Foam density: 45 kgs/cbm

Advantage:The thermo-break joint can minimize the leakage mostly. It is the ideal material used to cold store.

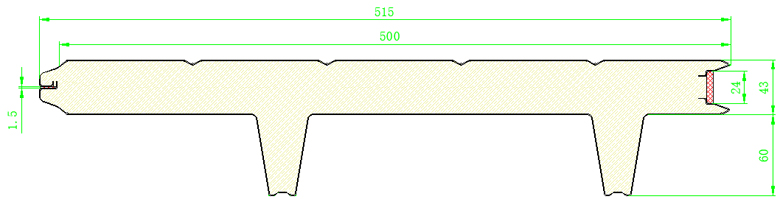

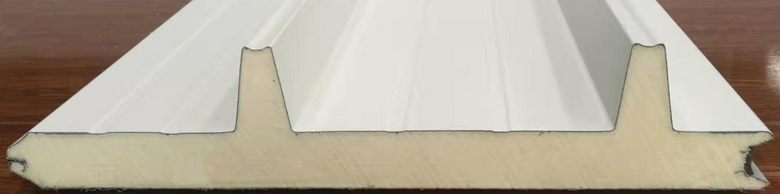

Rib panel,the max application span can be 12m;LIFTER is the only manufacturer of the rib panels by continuous line in China.

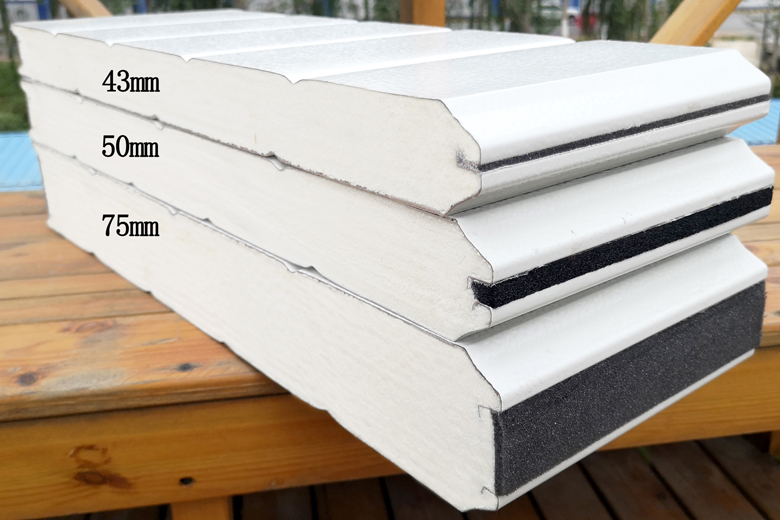

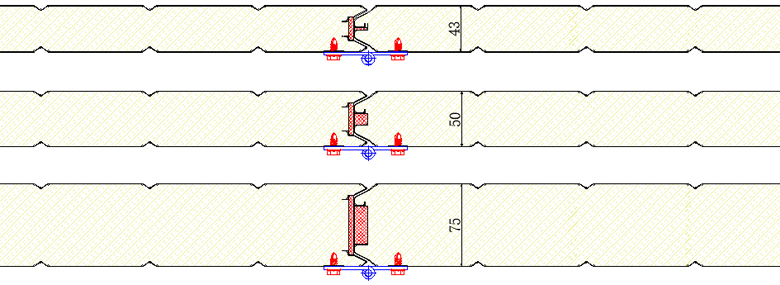

Thermo-break panel  43mm,50mm and 75mm
